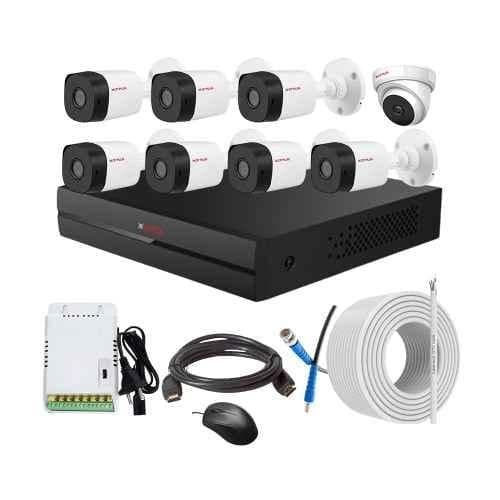

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 7 Bullet 1 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 7 Bullet 1 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 7 Bullet 1 Dome Camera, 8Ch SMPS, 70m Copper Cable & Connectors

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, a comprehensive surveillance solution perfect for both indoor and outdoor use. This kit includes an 8-channel DVR, 7 bullet cameras, 1 dome camera, an 8-channel SMPS, 70m of high-quality copper cable, and connectors. With its lens size of 3.6mm, you can expect clear and detailed footage capturing every important detail. The 70m cable length provides flexibility in camera placement, while the input voltage range of 150-240V AC ensures compatibility with various power sources. The embedded LINUX operating system guarantees reliable performance. With a wide operating temperature range of -40 to 60 deg C, this CCTV combo kit is designed to withstand harsh weather conditions. The 20m IR range enables night vision capabilities, ensuring 24/7 security. Trust the brand name, CP Plus, a renowned leader in the industry, to provide you with unparalleled surveillance solutions.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
