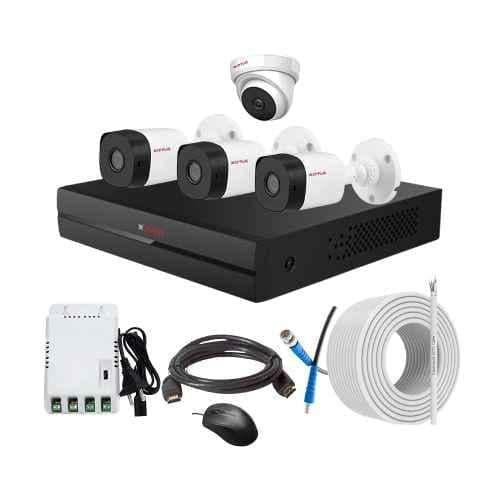

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

Upgrade your security with the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit. This comprehensive package includes everything you need to monitor your property effectively. With 3 bullet and 1 dome camera, you can cover a wide range of angles both indoors and outdoors. The 3.6 mm lens size ensures clear and detailed footage. The 70m copper cable allows for easy installation, while the included connectors make setup a breeze. The 4Ch DVR and 4Ch SMPS provide reliable power and storage for your surveillance system. With an operating system embedded in LINUX, you can trust in the stability and performance of this kit. The working temperature ranges from -10 to 45 degrees Celsius for the DVR and SMPS, with an impressive operating temperature range of -40 to 60 degrees Celsius. The infrared range of 20m ensures visibility even in low light conditions. Trust CP Plus to provide high-quality CCTV combo kits that offer top-notch security for your peace of mind.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹8,739

Contact OEM for bulk pricing & discounts
