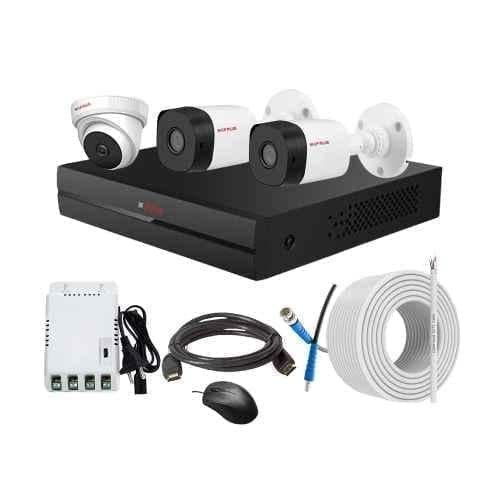

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, specially designed to provide comprehensive surveillance for your property. This fantastic package includes a 4Ch DVR, 2 Bullet cameras, 1 Dome camera, a 4Ch SMPS, 70m Copper Cable, and Connectors, making it a complete solution for your security needs.<br><br>The CP Plus brand is known for its superior quality and cutting-edge technology, ensuring that you get the best performance from your CCTV system. With a lens size of 3.6mm, you can capture clear and detailed footage both indoors and outdoors, allowing you to monitor your surroundings with ease.<br><br>The 70m long Copper Cable ensures that you can position your cameras in the ideal locations, providing optimal coverage of your property. The connectors make it easy to set up and connect all the components seamlessly.<br><br>This CCTV Combo Kit operates on an input voltage of 150-240 V AC, making it suitable for various power sources. The embedded LINUX operating system ensures stable and reliable performance, while the working temperature range of -10 to 45 degrees Celsius for the DVR and SMPS guarantees durability and functionality even in harsh conditions.<br><br>Featuring an IR range of 20m, the CP Plus CCTV Combo Kit captures detailed footage even in low-light situations, providing round-the-clock protection. With an operating temperature range of -40 to 60 degrees Celsius, this system can withstand extreme weather conditions, making it suitable for outdoor use.<br><br>In conclusion, the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit with its advanced features, durable design, and easy installation, is the perfect choice for individuals or businesses seeking reliable and high-quality surveillance. With this CCTV Combo Kit, you can ensure the safety and security of your property at all times.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
