CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

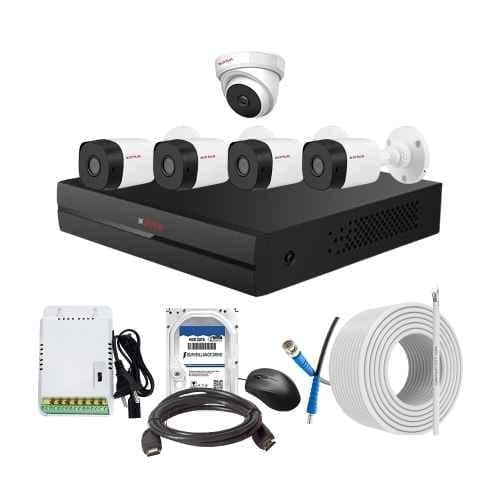

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the ultimate security solution for both indoor and outdoor surveillance. This comprehensive kit includes an 8Ch DVR, 4 bullet cameras, 1 dome camera, an 8Ch SMPS, 70m of high-quality cable, a 500GB HDD, and all the necessary connectors. With a lens size of 3.6 mm, the cameras provide clear and detailed footage of any area they cover. The long 70m cable ensures that you can easily connect the cameras to the DVR without any hassle. The input voltage range of 150-240 V AC makes it suitable for use in various locations. With an embedded LINUX operating system, the DVR offers reliable performance and efficient storage management. The working temperature range of -10 to 45 deg C for the DVR and SMPS ensures optimal functionality in different weather conditions. The cameras have an impressive IR range of 20m, allowing for visibility even in low-light environments. Operating between -40 to 60 deg C, these cameras are built to withstand extreme temperatures. With the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, you can ensure the safety and security of your property. Safeguard your home or business with this all-inclusive surveillance solution. Bring peace of mind with CP Plus, the trusted brand in security technology.

Technical Specifications

ModelDome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image SensorDome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingDome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W Bullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsDome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F1.85, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹14,499

Contact OEM for bulk pricing & discounts
