CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 7 Dome Camera, 8Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 7 Dome Camera, 8Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

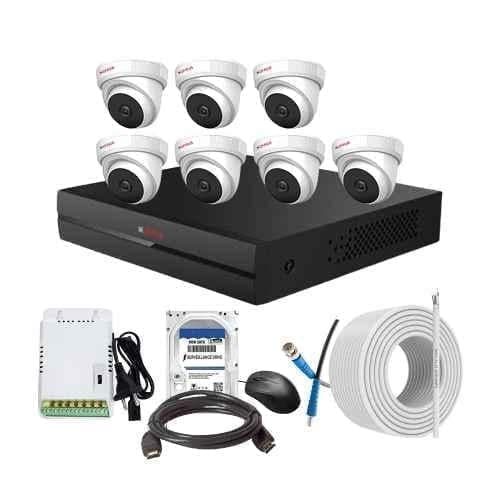

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 7 Dome Camera, 8Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

Introducing the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit, a reliable surveillance solution for both indoor and outdoor use. This kit includes an 8-channel DVR, 7 dome cameras, an 8-channel SMPS, 70m of high-quality copper cable, a 1TB HDD, and necessary connectors. The category name for this product is 'CCTV Combo Kits', offering customers a convenient all-in-one solution for their surveillance needs. With a lens size of 3.6mm, this kit provides a wide field of view, ensuring maximum coverage. The 70m cable length allows for flexible installation options, while the input voltage of 150-240V AC ensures compatibility with various power sources. Operating on an embedded LINUX operating system, the DVR offers reliable performance. The working temperature of the DVR and SMPS ranges from -10 to 45 degrees Celsius, ensuring functionality in various environmental conditions. The cameras boast an impressive IR range of 20m, allowing for clear recordings even in low-light settings. With an operating temperature range of -40 to 60 degrees Celsius, this CCTV combo kit is built to withstand extreme weather conditions. Experience peace of mind knowing that your property is secure with the CP Plus CCTV Combo Kit.

Technical Specifications

ModelDome: CP-URC-DC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
Rated Power48 W
Cable Length70 m
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹22,169

Contact OEM for bulk pricing & discounts
