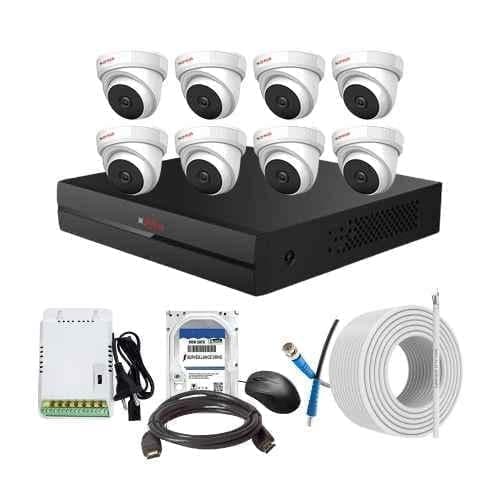

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Dome Camera, 8Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

The CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is the perfect choice for your surveillance needs. This kit includes everything you need to ensure the safety and security of your property. The 8 dome cameras, equipped with a 3.6 mm lens, deliver sharp and clear images. With a cable length of 70 m, you have the flexibility to install the cameras wherever you need them. The 8Ch DVR with a 500GB HDD provides ample storage for your footage. The kit also includes an 8Ch SMPS, 70m copper cable, and connectors. Operating on an embedded LINUX operating system, it ensures reliable performance. With an input voltage of 150-240 V AC, this kit is suitable for a variety of environments. With an operating temperature range of -10 to 45 deg C for the DVR and SMPS, and -40 to 60 deg C for the cameras, this kit can withstand harsh conditions. The 20 m IR range ensures clear and detailed footage even in low-light conditions. The CP Plus CCTV Combo Kit is a top-grade solution that offers advanced features and robust performance, providing you with peace of mind.

Technical Specifications

ModelDome: CP-URC-DC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
Rated Power48 W
Cable Length70 m
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Operating Temperature-40 to 60 deg C
