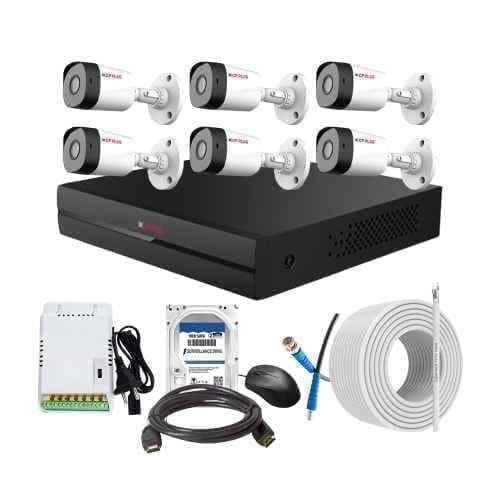

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

Introducing the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit, the perfect surveillance solution for your home or business. With its 8-channel DVR and 6 bullet cameras, this comprehensive kit ensures maximum coverage and security for your premises. The high-resolution 2.4MP cameras capture clear and detailed footage, while the 3.6mm lens size provides a wide viewing angle. The kit also includes a 70m copper cable, 8-channel SMPS, 1TB HDD, and connectors for easy installation. Featuring an embedded LINUX operating system, the DVR offers seamless functionality and reliable performance. Designed to withstand extreme temperatures, the DVR and SMPS can operate in temperatures ranging from -10 to 45 degrees Celsius, while the cameras can withstand temperatures from -40 to 60 degrees Celsius. Enhance your surveillance capabilities with the CP Plus CCTV Combo Kit.

Technical Specifications

ModelBullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F2.0, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹19,989

Contact OEM for bulk pricing & discounts
