CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

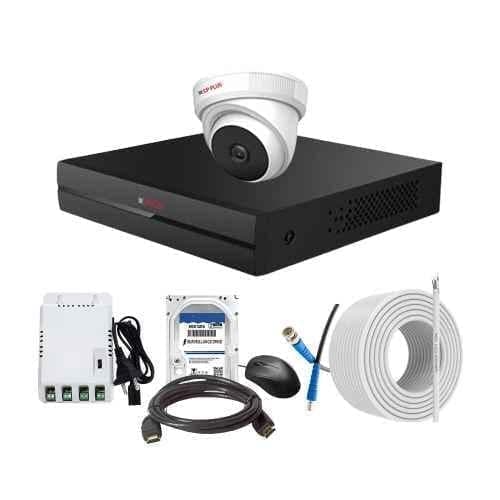

Introducing the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit, a comprehensive security solution for both indoor and outdoor surveillance. This kit includes a 4-channel DVR, 1 dome camera, 4-channel SMPS, 70m copper cable, 2TB HDD, and connectors – everything you need in one package. The CCTV Combo Kit is perfect for home or business use, ensuring that you can monitor your property effectively. With a lens size of 3.6mm, it captures clear and detailed footage. The 70m cable length allows for flexible installation. The system operates on an input voltage of 150-240V AC and features an embedded LINUX operating system for reliable performance. Additionally, the DVR and SMPS can withstand temperatures ranging from -10 to 45 degrees Celsius, ensuring durability. With an IR range of 20m and an operating temperature range of -40 to 60 degrees Celsius, this CCTV combo kit is designed to withstand various weather conditions. Trust the CP Plus brand for top-notch security solutions.

Technical Specifications

ModelDome: CP-URC-DC24PL2C-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
Rated Power48 W
Cable Length70 m
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹14,299

Contact OEM for bulk pricing & discounts
