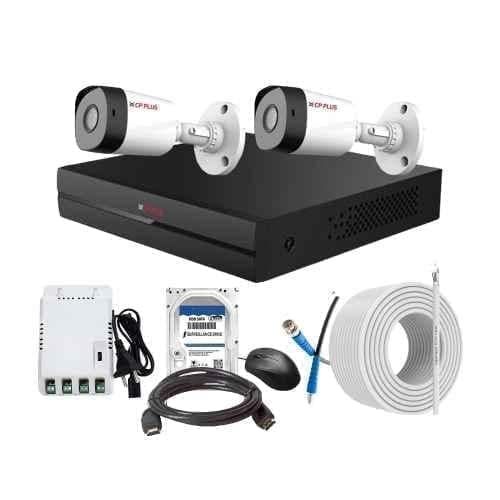

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

The CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is the ideal solution for your surveillance needs. This kit includes a 4Ch DVR, 2 bullet cameras, 4Ch SMPS, 70m copper cable, 2TB HDD, and connectors. With a lens size of 3.6mm, you can capture clear and detailed footage both indoors and outdoors. The cable length of 70m ensures that you can easily connect and set up your cameras. The input voltage of 150-240 V AC guarantees stable and efficient performance. The operating system, Embedded LINUX, provides a reliable and user-friendly interface. The DVR and SMPS are designed to withstand extreme temperatures ranging from -10 to 45 degrees Celsius. With an IR range of 20m, you can capture footage even in low-light conditions. The operating temperature range of -40 to 60 degrees Celsius ensures durability even in harsh weather conditions. Trust the brand name CP Plus for high-quality and dependable surveillance equipment.

Technical Specifications

ModelBullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F2.0, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
