CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

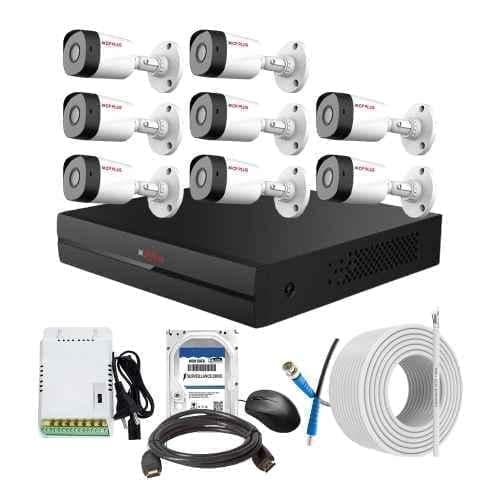

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

The CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is the ultimate security solution for both indoor and outdoor surveillance needs. This kit includes an 8Ch DVR, 8 bullet cameras, 8Ch SMPS, 70m copper cable, 1TB HDD, and connectors. With a lens size of 3.6mm, these cameras provide a clear and detailed view of your surroundings. The 70m cable length ensures flexible placement options. Input voltage ranges from 150-240V AC, making it suitable for various power sources. The embedded LINUX operating system ensures stable and reliable performance. The DVR and SMPS are designed to withstand temperatures from -10 to 45 degrees Celsius, while the cameras can handle temperatures from -40 to 60 degrees Celsius. With an IR range of 20m, this CCTV combo kit ensures round-the-clock surveillance. Protect your property with the reliable and efficient CP Plus brand.

Technical Specifications

ModelBullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F2.0, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
