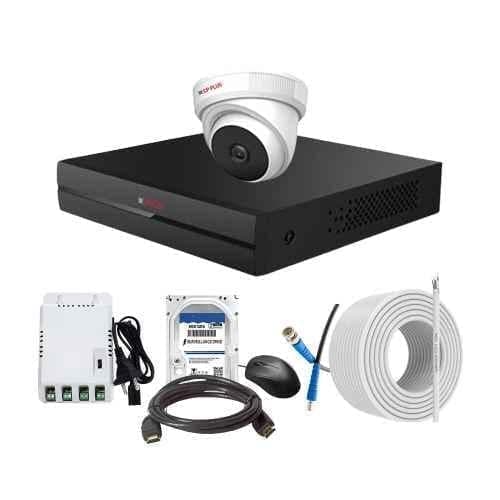

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

Rated at video resolution 1920x1080p, 1280x1024p & 1280x720p and a list price of ₹8,309, this CP Plus surveillance camera — the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors — is built for perimeter and entrance monitoring across warehouses, plants and retail floors. On the specification sheet video resolution of 1920x1080p, 1280x1024p & 1280x720p, camera of 2.4 MP, frequency range of 50-60 Hz and ir range of 20 m. The datasheet also lists power consumption Dome: 2.3 W DVR: <10 W, input voltage 150-240 V AC, voltage 12 V DC ±30% DVR: 12 V DC and rated power 48 W. Security integrators specify it where coverage, night performance and recording retention are audited. It is listed at ₹8,309 on Industrial Hardwares, supplied through verified OEMs and distributors. Compare the surveillance camera against similar models on this site, then request a quote for volume pricing and lead time.

Technical Specifications

ModelDome: CP-URC-DC24PL2C-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
Rated Power48 W
Cable Length70 m
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 2.3 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Operating Temperature-40 to 60 deg C
