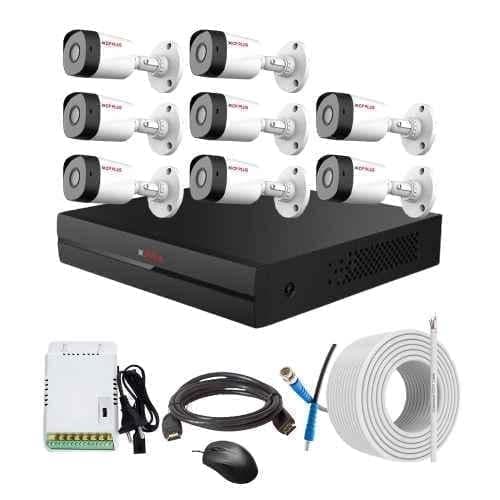

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

The CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors is the perfect solution for all your security needs. Whether you want to monitor your home or office, this CCTV combo kit provides high-quality surveillance footage to ensure safety and peace of mind.<br> <br>With a lens size of 3.6 mm, you can capture clear and detailed images both indoors and outdoors. The kit includes 8 bullet cameras, allowing you to cover a wide area and effectively monitor different spaces. The 8Ch DVR enables you to record and store the footage, providing you with evidence in case of any incidents.<br> <br>The 70m copper cable and connectors ensure a seamless connection between the cameras and the DVR, allowing for easy installation and setup. This kit also features an operating system embedded LINUX, which ensures smooth and reliable performance. The input voltage of 150-240 V AC makes it suitable for various power supplies.<br> <br>With an operating temperature range of -40 to 60 deg C, this CCTV combo kit is designed to withstand extreme weather conditions. The DVR and SMPS can operate in temperatures as low as -10 deg C, making it suitable for outdoor installations. The IR range of 20 m ensures clear visibility during nighttime surveillance.<br> <br>In summary, the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors is a reliable and efficient security solution. It offers high-quality footage, easy installation, and durability, making it an ideal choice for both residential and commercial settings.

Technical Specifications

ModelBullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F2.0, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
