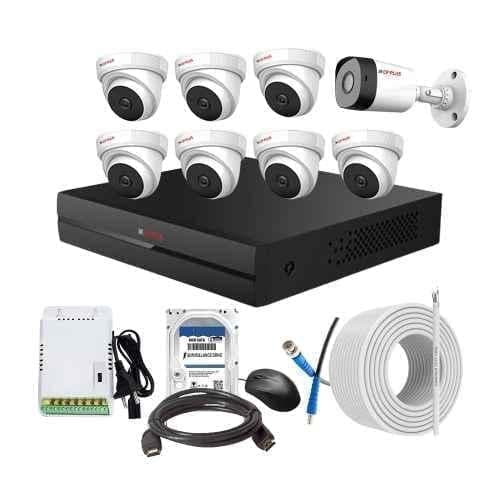

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 7 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 7 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 7 Dome Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

The CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is the perfect solution for your security needs. With its 8Ch DVR, 1 Bullet, 7 Dome Cameras, 8Ch SMPS, 70m Cable, 1TB HDD, and Connector, this kit has everything you need to monitor your indoor and outdoor spaces.<br> <br>The CCTV Combo Kit is designed to provide you with high-quality video footage, thanks to its 2.4MP Full HD resolution. The lens size of 3.6 mm ensures a wide field of view, capturing more details and reducing blind spots. The kit also includes a 70m cable, allowing you to easily connect the cameras to the DVR.<br> <br>With an input voltage of 150-240 V AC, the kit is compatible with most standard power outlets. The operating system, Embedded LINUX, ensures smooth and reliable performance. The working temperature of the DVR and SMPS ranges from -10 to 45 degrees Celsius, while the operating temperature of the cameras is between -40 to 60 degrees Celsius, making it suitable for various environments.<br> <br>Featuring an IR range of 20m, the CCTV Combo Kit allows for clear and crisp surveillance footage even in low-light conditions. This kit also includes a 1TB HDD, providing ample storage space for your video recordings.<br> <br>Overall, the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is a reliable and comprehensive security solution that offers high-quality video footage and easy installation. Trust CP Plus, a renowned brand in the field of security, to keep your premises safe and secure.

Technical Specifications

ModelDome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F2.0, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹22,029

Contact OEM for bulk pricing & discounts
