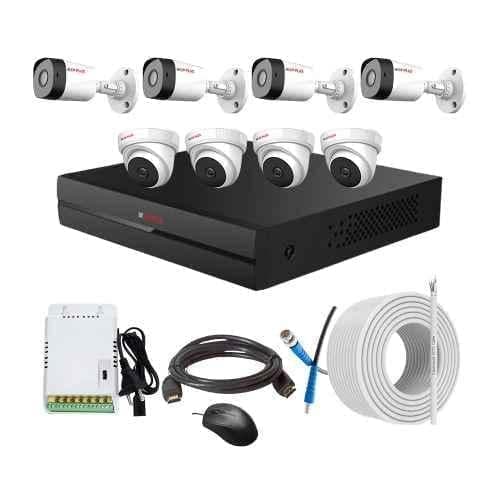

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 4 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 4 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 4 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

The CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is an excellent choice for all your surveillance needs. This kit includes everything you need to set up a comprehensive CCTV system. It comes with an 8-channel DVR that allows you to record and monitor footage from all the cameras simultaneously. With four dome and four bullet cameras, you can achieve 360-degree coverage of your indoor and outdoor spaces.<br> <br>The lens size of 3.6 mm ensures clear and detailed images, while the 70-meter copper cable provides flexibility in camera placement. The connectors make installation easy and hassle-free. The CP Plus brand ensures reliability and superior performance.<br> <br>The kit operates on an embedded LINUX operating system, ensuring efficient and smooth operation. The DVR and SMPS are designed to withstand extreme temperatures and can operate between -10 to 45 degrees Celsius. The cameras have an impressive IR range of 20 meters, providing enhanced visibility in low-light conditions. With an operating temperature range of -40 to 60 degrees Celsius, the system is suitable for a variety of environments.<br> <br>In summary, the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is a highly functional and durable solution for your surveillance needs.

Technical Specifications

ModelDome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25 cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F2.0, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹15,369

Contact OEM for bulk pricing & discounts
