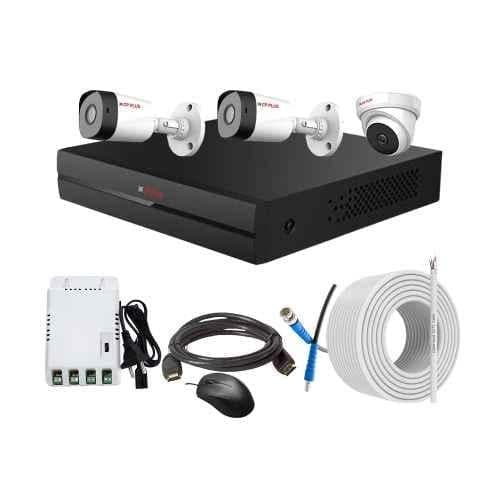

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

Specified at video resolution 1920x1080p, 1280x1024p & 1280x720p and a list price of ₹9,259, the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors is a CP Plus surveillance camera for round-the-clock site surveillance where recorded footage has to hold up as evidence. Key specifications include video resolution of 1920x1080p, 1280x1024p & 1280x720p, image sensor of 1/2.7 inch 2.4 Progressive Scan CMOS, camera of 2.4 MP and frequency range of 50-60 Hz. It is further specified with ir range 20 m, standards IP67, power consumption Bullet: 2.7 W DVR: <10 W and input voltage 150-240 V AC. Security integrators specify it where coverage, night performance and recording retention are audited. It is listed at ₹9,259 on Industrial Hardwares, supplied through verified OEMs and distributors. Bulk and project pricing for the surveillance camera is quoted on request, along with current availability.

Technical Specifications

ModelDome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F2.0, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
