CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 3 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 3 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

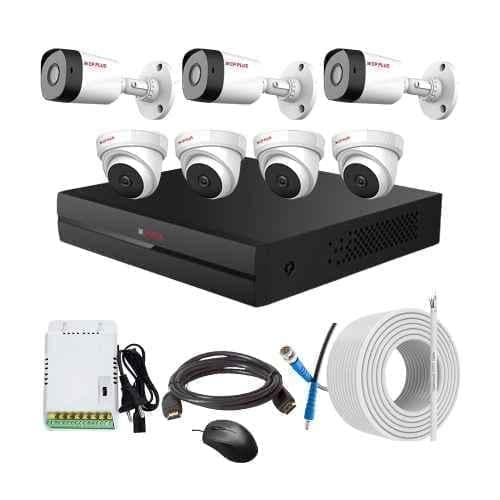

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 3 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

Introducing the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit, a comprehensive surveillance solution for both indoor and outdoor settings. This kit includes an 8-channel DVR, 4 dome cameras, 3 bullet cameras, an 8-channel SMPS, a 70m copper cable, and connectors.<br> <br>The CP Plus CCTV Combo Kit offers high-definition video quality with a lens size of 3.6 mm, ensuring clear and detailed footage. With a cable length of 70m, you have the flexibility to install the cameras at various locations. The input voltage range of 150-240 V AC provides versatility for power supply options.<br> <br>Equipped with an embedded LINUX operating system, this system ensures stable and reliable performance. The working temperature of the DVR and SMPS ranges from -10 to 45 degrees Celsius, allowing it to function efficiently in different weather conditions. The IR range of 20m ensures high visibility during nighttime surveillance.<br> <br>With an impressive operating temperature range of -40 to 60 degrees Celsius, this CCTV combo kit is designed to withstand extreme environmental conditions. Maintain a watchful eye on your property, even in challenging climates.<br> <br>In summary, the CP Plus CCTV Combo Kit is a reliable and user-friendly surveillance solution offering exceptional performance and durability. Harness the power of advanced technology to ensure the safety and security of your surroundings. Trust the renowned brand, CP Plus, for all your surveillance needs.

Technical Specifications

ModelDome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F2.0, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹14,119

Contact OEM for bulk pricing & discounts
