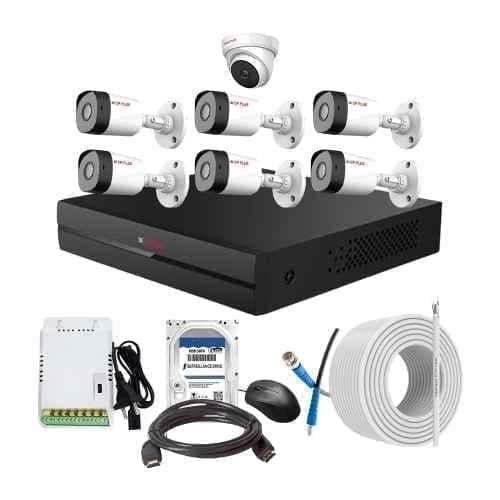

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Introducing the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit, the perfect surveillance solution for both indoor and outdoor environments. This comprehensive kit includes an 8-channel DVR, 6 bullet cameras, 1 dome camera, an 8-channel SMPS, 70m of high-quality cable, a 500GB HDD for ample storage, and all necessary connectors. With a lens size of 3.6 mm, this kit ensures clear and detailed footage. The cable length of 70m allows for flexible installation options. Operating on an input voltage of 150-240 V AC, this kit is suitable for various power requirements. The embedded LINUX operating system guarantees reliable performance. Capable of operating in temperatures ranging from -10 to 45 deg C, the DVR and SMPS are designed to withstand challenging conditions. The IR range of 20m delivers superb night vision capabilities. With an operating temperature range of -40 to 60 deg C, this kit can withstand extreme weather conditions. Upgrade your security with the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit.

Technical Specifications

ModelDome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F2.0, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C
