CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 3 Dome Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 3 Dome Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

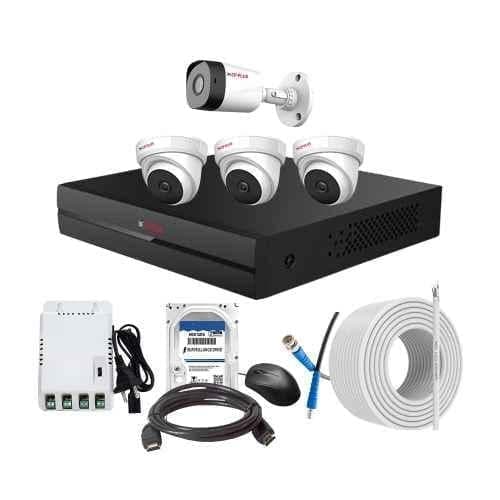

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 3 Dome Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector

The CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is the perfect solution for your surveillance needs. Whether it's for your home or business, this kit provides you with everything you need to keep an eye on things. The kit includes a 4Ch DVR, 1 bullet camera, 3 dome cameras, 4Ch SMPS, 70m cable, 500GB HDD, and connector.<br> <br>With a lens size of 3.6 mm, you can expect clear and detailed images from all angles. The 70m cable length ensures that you can easily set up your cameras in any location. The input voltage of 150-240 V AC ensures that the cameras will always receive a stable power supply.<br> <br>The operating system of the DVR is Embedded LINUX, providing a stable and reliable platform for recording and managing your footage. The working temperature range of the DVR and SMPS is -10 to 45 deg C, allowing the kit to function in extreme weather conditions.<br> <br>With an IR range of 20m, the cameras can capture clear images even in low light conditions. The operating temperature range of -40 to 60 deg C ensures that the cameras can withstand even the harshest outdoor environments.<br> <br>Overall, the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit is a reliable and comprehensive surveillance solution. With its high-quality components and advanced features, it is a perfect choice for both residential and commercial applications.<br> <br>Join the CP Plus family today and experience the peace of mind that comes with knowing your property is protected.

Technical Specifications

ModelDome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F2.0, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹12,839

Contact OEM for bulk pricing & discounts
