CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 2 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 2 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

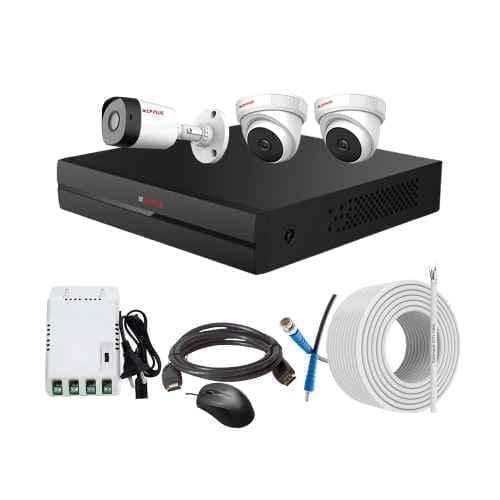

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 2 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

Introducing the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit, the perfect surveillance solution for both indoor and outdoor spaces. This combo kit includes a 4-channel DVR, 1 bullet camera, 2 dome cameras, a 4-channel SMPS, 70m copper cable, and connectors. <br> <br>Featuring a lens size of 3.6mm, this CCTV kit provides clear and detailed images, ensuring that no activity goes unnoticed. The 70m copper cable allows for easy installation, providing flexibility in camera placement. With an input voltage of 150-240V AC, it can be easily powered in various locations. <br> <br>Equipped with an embedded LINUX operating system, this CCTV kit delivers reliable and efficient performance. The DVR and SMPS have a working temperature range of -10 to 45 degrees Celsius, ensuring optimal functionality even in extreme climates. With an IR range of 20m, this CCTV kit enables clear recording in low-light conditions. <br> <br>Designed to withstand harsh conditions, the operating temperature ranges from -40 to 60 degrees Celsius, making it suitable for outdoor installation. <br> <br>Choose the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit for comprehensive surveillance coverage. Trust the brand name 'CP Plus' for its commitment to delivering exceptional quality and reliable products.

Technical Specifications

ModelDome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F2.0, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹9,279

Contact OEM for bulk pricing & discounts

View OEM Profile
