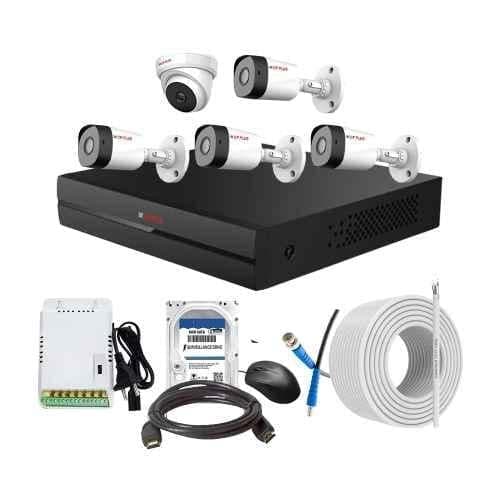

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Full HD Audio Indoor

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Introducing the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit, the ultimate surveillance solution for your home or business. With this comprehensive kit, you will receive an 8-channel DVR, 4 high-resolution bullet cameras, 1 dome camera, an 8-channel SMPS, a 70m cable, a 500GB HDD, and all the necessary connectors.<br> <br>The CP Plus CCTV Combo Kit is designed to provide full HD video surveillance both indoors and outdoors. The 3.6 mm lens size ensures a wide coverage area, capturing clear and detailed footage. The 70m cable length provides flexibility for camera placement, allowing you to cover larger areas with ease.<br> <br>Operating on an input voltage of 150-240 V AC, the kit is compatible with a wide range of power sources. The embedded LINUX operating system ensures stable and reliable performance. With an operating temperature range of -10 to 45 deg C for the DVR and SMPS, and -40 to 60 deg C for the cameras, this kit can withstand various environmental conditions.<br> <br>Equipped with infrared (IR) technology, the cameras have an IR range of 20m, providing excellent visibility even in low-light conditions. The 500GB HDD allows for ample storage of your recorded footage.<br> <br>Trust in the CP Plus brand to deliver exceptional quality and reliable performance. The CCTV Combo Kits category ensures you have everything you need for a comprehensive and effective surveillance system. Upgrade your security today with the CP Plus 2.4MP Full HD Audio Indoor & Outdoor CCTV Combo Kit.

Technical Specifications

ModelDome: CP-URC-DC24PL2C-V3 Bullet: CP-URC-TC24PL2C-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.7 inch 2.4 Progressive Scan CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Streaming2.4MP at 25/30fps & 25/30/50/60fps at720P
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 2.7 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus).�A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.04 Lux/F2.0, 30IRE & 0Lux IR on
Operating Temperature-40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹14,729

Contact OEM for bulk pricing & discounts
