CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

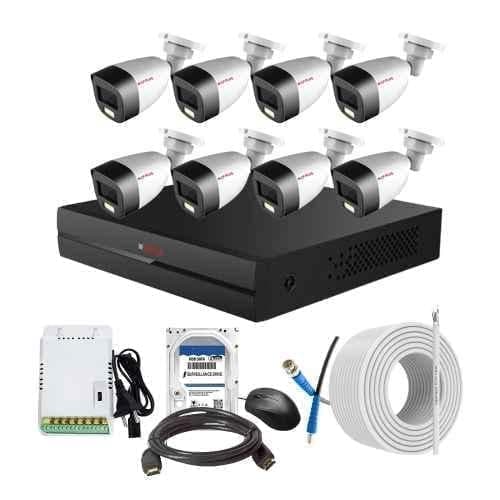

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 8 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the ultimate solution for all your security needs. This CCTV combo kit includes an 8-channel DVR, 8 bullet cameras, an 8-channel SMPS, a 70m copper cable, a 2TB HDD, and connectors.<br> <br>The high-definition bullet cameras provide crystal clear images and videos, ensuring that every detail is captured. With a lens size of 3.6mm, you can easily cover a wide area for maximum surveillance. The IR range of 20m enables clear visibility even in low light conditions.<br> <br>Featuring an embedded LINUX operating system, the DVR provides a seamless and user-friendly interface for easy navigation and monitoring. The 2TB HDD allows for ample storage space to store all your recorded footage.<br> <br>With an operating temperature range of -10 to 45 deg C for the DVR and SMPS, and -40 to 60 deg C for the bullet cameras, this combo kit is designed to withstand extreme weather conditions. The cable length of 70m provides flexibility in camera placement, while the input voltage range of 150-240V AC ensures compatibility with various power sources.<br> <br>Trust in the reliability and performance of CP Plus products, making it a leading brand in the CCTV industry. Enhance your security system with the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, ensuring peace of mind and protection for your property.

Technical Specifications

ModelBullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureBullet: -40 to 60 deg C
