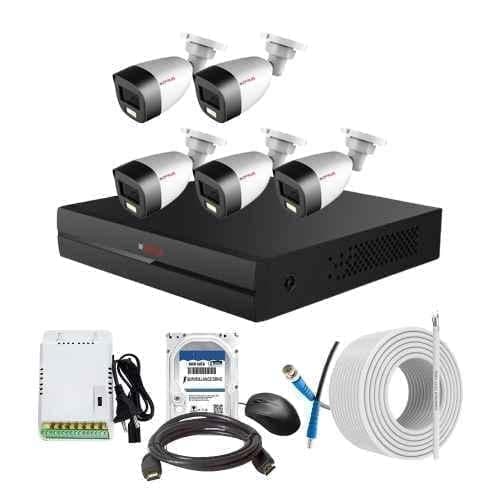

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the perfect surveillance solution for your home or business. This CCTV Combo Kit includes everything you need to set up a comprehensive security system.<br> <br>The kit includes a high-quality 8Ch DVR with an embedded LINUX operating system for smooth and efficient performance. With a massive 1TB HDD, you'll have plenty of storage space for your video recordings. The 8Ch SMPS ensures a reliable power supply for all your cameras.<br> <br>Speaking of cameras, this combo kit comes with 5 bullet cameras that deliver exceptional 2.4MP full-color HD video footage. The 3.6mm lens size provides a wide-angle view, capturing more details of every scene. These cameras are equipped with infrared technology, allowing you to monitor your property even in complete darkness with an impressive IR range of 20 meters.<br> <br>With an operating temperature range of -10 to 45 degrees Celsius for the DVR and SMPS and -40 to 60 degrees Celsius for the bullet cameras, this combo kit is designed to withstand extreme weather conditions. The 70m copper cable ensures optimal connectivity between your cameras and the DVR.<br> <br>Trust the reliable brand CP Plus to protect your property. The CCTV Combo Kit is ideal for both indoor and outdoor use. With its top-of-the-line features and easy installation, this kit is perfect for keeping an eye on your premises.

Technical Specifications

ModelBullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureBullet: -40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹21,649

Contact OEM for bulk pricing & discounts

View OEM Profile
