CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet Camera, 8Ch SMPS, 70m Copper Cable, 2TB HDD & Connectors

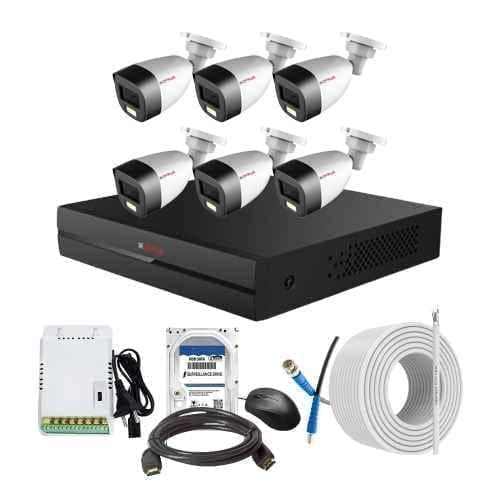

The CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit is the perfect solution for all your security needs. This kit comes with an 8-channel DVR, 6 bullet cameras, 8-channel SMPS, 70m copper cable, 2TB HDD, and connectors.<br> <br>With a lens size of 3.6mm, the cameras provide a wide viewing angle, ensuring that every corner is covered. The 70m copper cable allows for easy installation and ensures a reliable connection. The 2TB HDD provides ample storage space to store all your footage.<br> <br>The CP Plus CCTV Combo Kit is designed for both indoor and outdoor use. With an operating temperature range of -10 to 45 degrees Celsius for the DVR and SMPS, and -40 to 60 degrees Celsius for the bullet cameras, you can rely on this kit to perform in any weather condition.<br> <br>Featuring an embedded LINUX operating system, this CCTV combo kit offers superior performance and stability. The IR range of 20m allows for clear night vision, providing enhanced security even in the dark.<br> <br>Experience peace of mind knowing that your property is protected with the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit. Shop now and keep a watchful eye over your surroundings.

Technical Specifications

ModelBullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureBullet: -40 to 60 deg C
