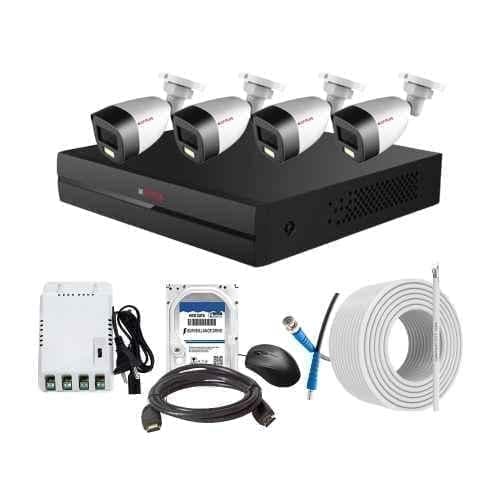

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

The CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit is the ultimate surveillance solution for your home or business. This CCTV Combo Kit is designed to provide you with high-quality video footage and crisp audio.<br> <br>Including a 4Ch DVR, 4 Bullet Cameras, 4Ch SMPS, 70m Copper Cable, 1TB HDD, and Connectors, this kit has everything you need to set up a comprehensive surveillance system. The 4Ch DVR ensures seamless video recording and playback, while the 1TB HDD allows for ample storage capacity. With the 4 Bullet Cameras, you can monitor both indoor and outdoor areas, ensuring complete coverage.<br> <br>The CP Plus CCTV Combo Kit is easy to install and operate. The lens size of 3.6 mm offers a wide viewing angle, capturing more detail in the footage. The 70m copper cable provides flexibility in camera placement, while the input voltage of 150-240 V AC ensures stable and reliable power supply. The embedded LINUX operating system guarantees a smooth and efficient performance.<br> <br>This CCTV Combo Kit is built to withstand harsh weather conditions, with a working temperature range of -10 to 45 deg C for the DVR & SMPS and -40 to 60 deg C for the Bullet Cameras. The 20m IR range ensures clear visibility even in low-light conditions.<br> <br>Trust CP Plus, a leading brand in CCTV technology, to protect your property and loved ones. With this CCTV Combo Kit, you can have peace of mind knowing that you have a reliable and effective surveillance system in place.

Technical Specifications

ModelBullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureBullet: -40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹18,379

Contact OEM for bulk pricing & discounts
