CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

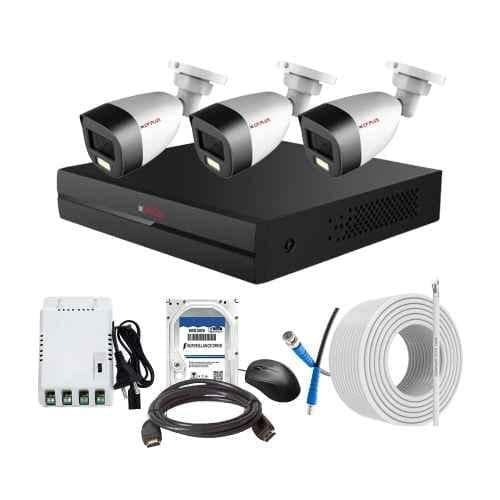

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, a reliable and comprehensive surveillance solution. As part of our CCTV Combo Kits category, this product is designed to meet all your security needs. With the trusted brand name of CP Plus, you can be assured of top-notch quality.<br> <br>The kit includes a 4Ch DVR, which allows you to connect up to 3 bullet cameras for both indoor and outdoor use. The 3.6mm lens size ensures clear and detailed images, while the 70m copper cable provides flexibility in camera placement. Additionally, the 500GB HDD allows for ample storage of recorded footage.<br> <br>This combo kit is easy to install and operate, thanks to the Embedded LINUX operating system. With an input voltage range of 150-240V AC, it is suitable for various power sources. The working temperature range of -10 to 45 deg C for the DVR and SMPS ensures reliable performance in different environments.<br> <br>Equipped with a 20m IR range, these cameras offer excellent night vision capabilities. The bullet cameras have an operating temperature range of -40 to 60 deg C, making them ideal for extreme weather conditions.<br> <br>In summary, the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit provides a comprehensive surveillance solution for your security needs. With its high-quality components and reliable performance, it is an excellent choice for both residential and commercial applications.

Technical Specifications

ModelBullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureBullet: -40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹12,689

Contact OEM for bulk pricing & discounts
