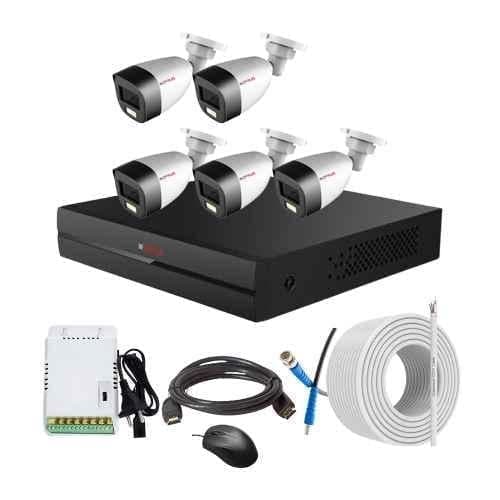

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, specifically designed to provide comprehensive security coverage for both indoor and outdoor areas. This state-of-the-art kit includes an 8-channel DVR, 5 bullet cameras, an 8-channel SMPS, 70m of copper cable, and connectors, ensuring that you have everything you need for a seamless installation.<br> <br>The CP Plus CCTV Combo Kit boasts a lens size of 3.6 mm, allowing for clear and detailed footage. With a cable length of 70m, you can easily extend your surveillance coverage without any hassle. The input voltage of 150-240 V AC makes it compatible with a wide range of power sources, guaranteeing a stable and reliable operation.<br> <br>Equipped with an embedded LINUX operating system, the DVR ensures secure storage and easy access to your recorded footage. The working temperature range of the DVR and SMPS is from -10 to 45 deg C, ensuring optimal performance even in varying climatic conditions. The bullet cameras, on the other hand, can withstand extreme temperatures ranging from -40 to 60 deg C, making them perfectly suitable for outdoor use.<br> <br>With an impressive IR range of 20m, these cameras capture crystal-clear images even in low-light conditions, ensuring that every detail is visible. The CP Plus CCTV Combo Kit is the perfect choice for individuals or businesses seeking a reliable and top-of-the-line security solution.<br> <br>Upgrade your surveillance system today and enjoy peace of mind with the advanced features and exceptional performance offered by the CP Plus brand. With its comprehensive coverage and durable design, this kit is ideal for a wide range of applications, ranging from homes and offices to retail spaces and warehouses. Trust in CP Plus to safeguard your assets with their reliable CCTV Combo Kits.

Technical Specifications

ModelBullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureBullet: -40 to 60 deg C

Need this integrated into a custom solution?

Tell us your use case →

Pricing

Listed Price

₹17,149

Contact OEM for bulk pricing & discounts
