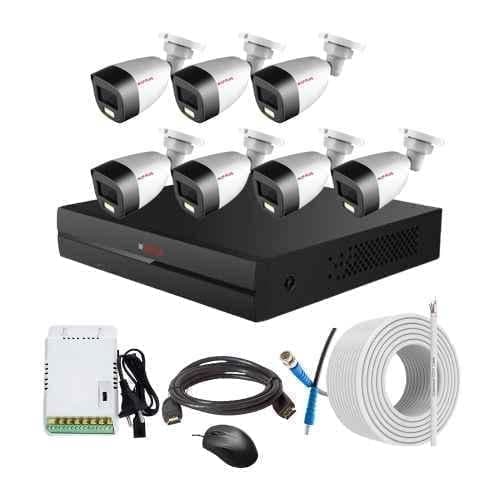

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 7 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 7 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 7 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

The CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 7 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors is the perfect surveillance solution for any residential or commercial property. With its advanced features and reliable performance, this CCTV combo kit ensures optimal security and peace of mind.<br> <br>The high-definition 2.4MP bullet cameras capture crystal-clear video footage both indoors and outdoors. With a lens size of 3.6mm, these cameras provide a wide viewing angle, ensuring that no detail goes unnoticed. Plus, the built-in audio allows for audio monitoring in addition to video recording.<br> <br>The kit includes an 8Ch DVR that supports the embedded LINUX operating system. This provides a stable and secure platform for video storage and remote access. The DVR also has an input voltage range of 150-240V AC, making it suitable for different electrical setups.<br> <br>The included 8Ch SMPS ensures a reliable power supply and keeps the system running smoothly. With a cable length of 70m, you can easily set up cameras in various locations without the need for additional extensions. The kit also comes with connectors for easy installation.<br> <br>The CP Plus CCTV Combo Kit is designed to withstand extreme temperatures. The DVR and SMPS can operate in temperatures ranging from -10 to 45 degrees Celsius, ensuring consistent performance in harsh conditions. The bullet cameras, on the other hand, can withstand temperatures from -40 to 60 degrees Celsius, making them suitable for any environment.<br> <br>With an IR range of 20m, these cameras provide clear and detailed images even in low-light conditions. This makes it ideal for 24/7 surveillance.<br> <br>In conclusion, the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 7 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors is a reliable and comprehensive solution for all your security needs. With its advanced features, durable construction, and high-performance components, this CCTV combo kit ensures optimal protection for your property.

Technical Specifications

ModelBullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureBullet: -40 to 60 deg C
