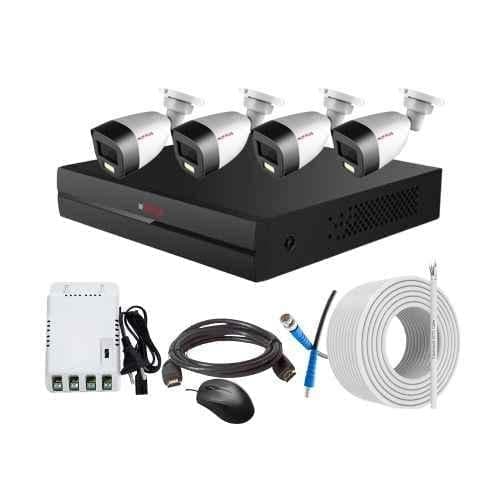

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 4 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the perfect solution for all your surveillance needs. This comprehensive kit includes a 4Ch DVR, four bullet cameras, a 4Ch SMPS, 70m of high-quality copper cable, and connectors. Designed by the trusted brand CP Plus, this kit ensures superior performance and reliability.<br> <br>The CCTV Combo Kits category is where you will find this state-of-the-art kit. It offers everything you need to set up a robust and effective security system for your home or office. Equipped with a 3.6mm lens size, the cameras capture crystal-clear footage with remarkable detail. The 70m cable length allows for flexible placement of the cameras, ensuring comprehensive coverage.<br> <br>With an input voltage range of 150-240 V AC, this kit is compatible with various power sources. The embedded LINUX operating system ensures smooth and efficient operation of the DVR, while the working temperature range of -10 to 45 deg C guarantees reliable performance in any climate. Additionally, the bullet cameras can withstand extreme temperatures from -40 to 60 deg C, further enhancing their durability.<br> <br>Thanks to the advanced IR range of 20m, this kit provides impressive night vision capabilities, ensuring round-the-clock surveillance. Whether you need to monitor your property indoors or outdoors, this CCTV combo kit offers the perfect solution. Trust CP Plus to deliver exceptional quality and performance for all your security needs.

Technical Specifications

ModelBullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionBullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureBullet: -40 to 60 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureBullet: -40 to 60 deg C
