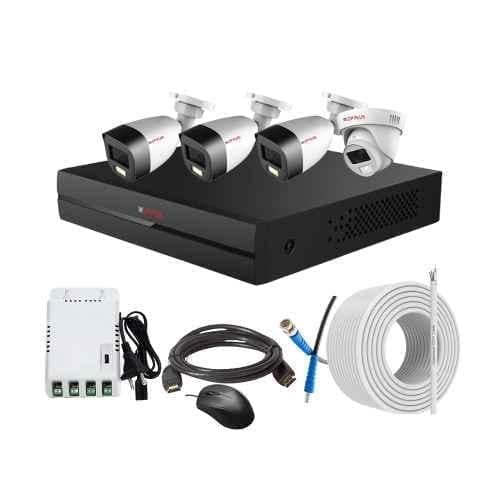

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the ultimate security solution for your home or business. This comprehensive kit includes everything you need to monitor and safeguard your property. <br> <br>Featuring a 4-channel DVR with an embedded LINUX operating system, this system ensures smooth and dependable performance. The DVR supports up to 3 bullet cameras and 1 dome camera, providing complete coverage for both indoor and outdoor areas. <br> <br>Equipped with a 3.6 mm lens size, these cameras deliver crisp and clear images, capturing every detail with precision. With a cable length of 70 meters, you can easily install and position the cameras wherever you need them most. <br> <br>The CP Plus Combo Kit utilizes advanced audio technology, allowing you to hear and record audio alongside video footage. This enhances the overall security experience, giving you the ability to monitor not just visually, but audibly as well. <br> <br>With an input voltage range of 150-240V AC, this kit is compatible with a wide range of power sources, providing flexibility and convenience. The included 4-channel SMPS ensures stable and reliable power supply to the cameras. <br> <br>Built to withstand tough conditions, the DVR and SMPS can operate in temperatures ranging from -10 to 45 degrees Celsius. The dome camera can withstand even harsher environments, with an operating temperature range of -40 to 55 degrees Celsius. <br> <br>With an impressive infrared range of 20 meters, the CP Plus Combo Kit ensures round-the-clock surveillance, even in low light or complete darkness. This feature grants you peace of mind, knowing that your property is protected at all times. <br> <br>Experience unparalleled security and convenience with the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit. Trust the reliable brand name of CP Plus to safeguard your property with advanced technology, comprehensive coverage, and superior performance.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
