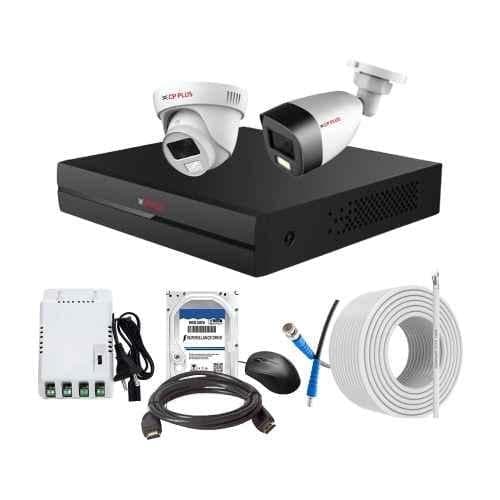

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome 1 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome 1 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome 1 Bullet Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, a comprehensive surveillance solution designed to enhance your security. This kit, part of the CCTV Combo Kits category, is brought to you by the trusted brand, CP Plus. <br> <br>Featuring a 4-channel DVR, this kit is equipped with advanced technology to provide high-quality video recording and playback. The DVR runs on an embedded LINUX operating system, ensuring smooth and efficient performance.<br> <br>The combo kit includes 1 dome and 1 bullet camera, both capable of capturing clear and detailed footage. The 3.6mm lens size ensures a wide viewing angle, while the 20m IR range allows for crisp nighttime monitoring.<br> <br>With a cable length of 70m, this kit offers flexibility in camera placement for both indoor and outdoor use. The kit also includes a 4Ch SMPS (Switch Mode Power Supply) and a 2TB HDD (Hard Disk Drive), providing ample storage space for your recordings.<br> <br>Operating at a temperature range of -10 to 45°C, the DVR and SMPS ensure reliable performance in diverse weather conditions. The dome camera operates even at extreme temperatures, ranging from -40 to 55°C.<br> <br>Experience enhanced security with the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit. Trust in CP Plus, a brand dedicated to providing reliable and innovative surveillance solutions.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
