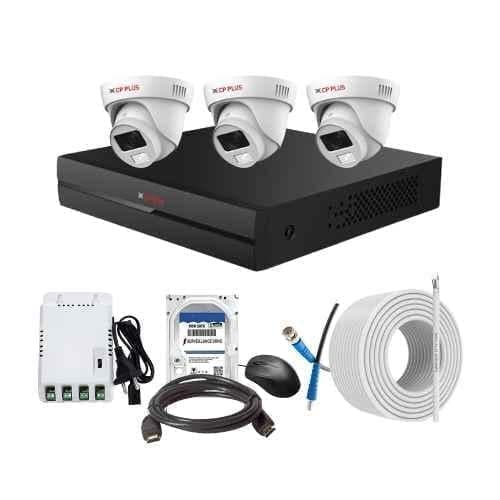

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Dome Camera, 4Ch SMPS, 70m Copper Cable, 1TB HDD & Connectors

Enhance the security of your property with the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit. This comprehensive kit includes everything you need for reliable surveillance. <br> <br>The kit comes with a 4Ch DVR that allows you to monitor and record footage from up to 4 cameras simultaneously. The DVR features an embedded LINUX operating system that ensures smooth and efficient performance. It supports a 1TB HDD for ample storage space, so you can store weeks' worth of video recordings.<br> <br>The kit includes 3 dome cameras with a lens size of 3.6 mm. These cameras provide high-resolution images and capture vivid color even in low light conditions. With an impressive IR range of 20 m, these cameras ensure that no activity goes unnoticed.<br> <br>The CP Plus CCTV Combo Kit also includes a 4Ch SMPS for reliable power supply. With an input voltage range of 150-240 V AC, it can easily adapt to different power requirements. The kit also includes a 70m copper cable for hassle-free installation.<br> <br>Designed to withstand extreme conditions, the dome cameras have an operating temperature range of -40 to 55 degrees Celsius. The DVR and SMPS can operate in temperatures ranging from -10 to 45 degrees Celsius.<br> <br>Overall, the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit offers comprehensive surveillance solutions for both indoor and outdoor areas. With its advanced features and CP Plus brand reliability, you can trust this kit to provide the security you need to protect your property.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 Amp
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C
