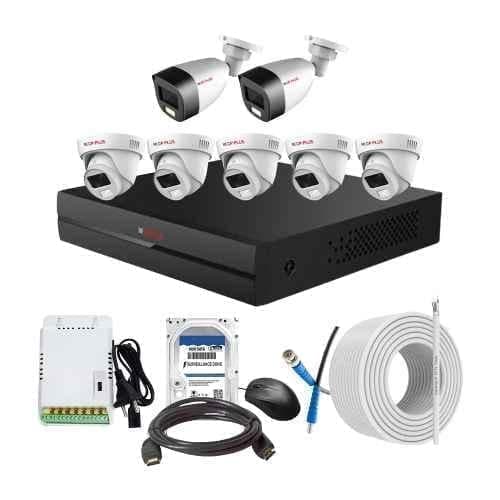

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector

The CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome 2 Bullet Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector is the perfect solution for all your security needs. With its high-definition audio and video capabilities, you can monitor both indoor and outdoor areas with clarity and detail.<br> <br>The CCTV Combo Kit includes 5 dome cameras and 2 bullet cameras, offering a comprehensive surveillance system that can cover a wide area. The 3.6mm lens size ensures a clear and wide-angle view, capturing every detail of the surroundings.<br> <br>With a cable length of 70m, you have the flexibility to install the cameras in various locations. The included 8Ch SMPS provides stable power supply to the cameras, ensuring continuous monitoring without interruptions.<br> <br>Equipped with a 2TB HDD, the DVR enables you to record and store a large amount of footage. The embedded LINUX operating system ensures smooth and efficient performance, while the input voltage range of 150-240 V AC allows for universal compatibility.<br> <br>Designed to withstand various weather conditions, the DVR and SMPS can operate in temperatures ranging from -10 to 45 degrees Celsius. The dome cameras, on the other hand, can withstand extreme temperatures from -40 to 55 degrees Celsius, making them suitable for both indoor and outdoor use.<br> <br>With an IR range of 20m, the cameras provide excellent night vision capabilities, ensuring round-the-clock surveillance. The CCTV Combo Kit from CP Plus is a reliable and powerful solution for all your security needs.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
