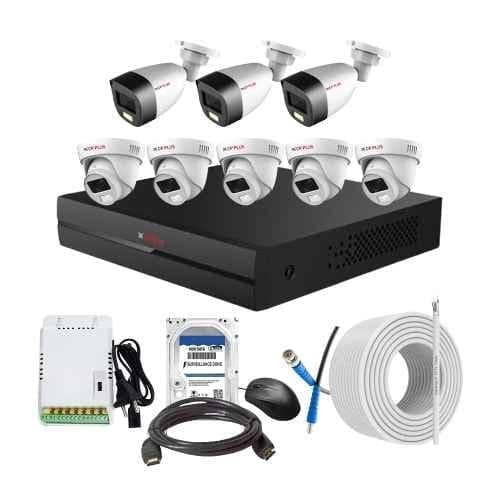

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome 3 Bullet Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome 3 Bullet Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome 3 Bullet Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the ultimate surveillance solution for your home or business. This comprehensive kit includes an 8Ch DVR, 5 Dome cameras, 3 Bullet cameras, an 8Ch SMPS, a 70m cable, a 2TB HDD, and a Connector. <br> <br>With its advanced features and high-quality lens size of 3.6mm, this CCTV Combo Kit ensures clear and detailed footage both indoors and outdoors. The 8Ch DVR allows you to monitor multiple areas simultaneously, providing maximum security coverage. <br> <br>Thanks to the embedded LINUX operating system, you can easily navigate and manage your CCTV system with ease. The kit is also designed to withstand extreme temperatures, with the DVR and SMPS operating between -10 to 45 degrees Celsius, while the Dome cameras function between -40 to 55 degrees Celsius.<br> <br>Equipped with an impressive IR range of 20m, this CCTV Combo Kit captures crystal clear images even in low-light conditions. The 70m cable provides flexibility in camera placement, ensuring comprehensive coverage of your property.<br> <br>Trust in the renowned brand of CP Plus for a reliable and effective CCTV solution. Enhance your security with the CP Plus CCTV Combo Kit and have peace of mind knowing that your property is protected.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
