CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 4 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 4 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

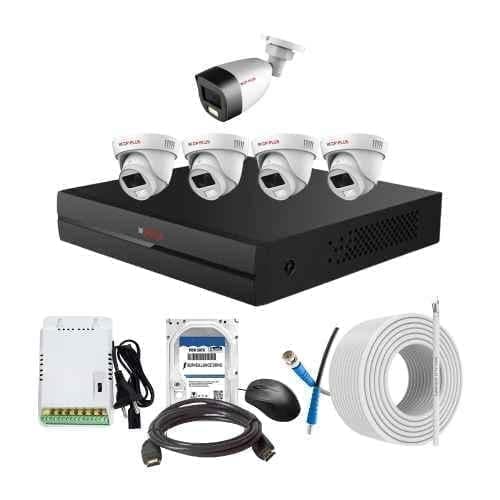

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 4 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, a reliable and efficient surveillance solution for both indoor and outdoor use. This comprehensive kit includes an 8-channel DVR, 1 bullet camera, 4 dome cameras, an 8-channel SMPS, 70m of high-quality cable, a 500GB HDD, and connector accessories. With a lens size of 3.6 mm, this CCTV combo kit ensures crystal-clear footage, capturing every detail with precision. The 70m cable allows for a flexible installation, enabling you to cover a wide area. The input voltage range of 150-240 V AC ensures compatibility in different environments. The embedded LINUX operating system guarantees seamless functionality, while the working temperature range of -10 to 45 degrees Celsius for the DVR and SMPS, and -40 to 55 degrees Celsius for the dome camera, ensures reliable performance in various conditions. The IR range of 20m provides excellent night vision capabilities. Experience peace of mind with the CP Plus CCTV Combo Kit – safeguard your property with ease.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
