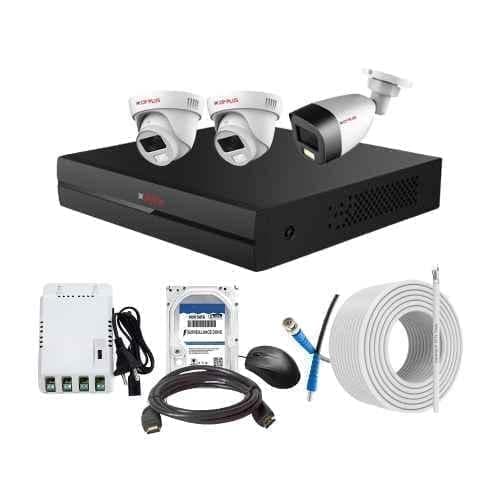

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 2 Dome Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 2 Dome Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 2 Dome Camera, 4Ch SMPS, 70m Cable, 2TB HDD & Connector

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, designed to provide comprehensive surveillance for your home or business. This top-of-the-line kit includes the essential components needed to ensure complete security and peace of mind.<br> <br>The kit features a 4-channel DVR, allowing you to connect up to four cameras for maximum coverage. The DVR is equipped with a 2TB HDD, providing ample storage space for high-quality footage. With the embedded LINUX operating system, you can expect reliable performance and efficient operation.<br> <br>Included in the kit are 1 bullet and 2 dome cameras, delivering exceptional image quality and clarity. The 3.6 mm lens size ensures a wide field of view, capturing more details in each frame. With a cable length of 70m, you can easily place the cameras in strategic locations and cover large areas without any hassle.<br> <br>The CP Plus CCTV Combo Kit comes with a 4Ch SMPS, guaranteeing stable power supply and seamless operation. The input voltage range of 150-240 V AC ensures compatibility with various power sources. The kit also includes a 70m cable and connector, offering flexibility in camera placement.<br> <br>With an impressive working temperature range of -10 to 45 deg C for the DVR and SMPS, the kit can withstand harsh weather conditions. The dome camera operates at an even wider temperature range of -40 to 55 deg C. This makes it suitable for both indoor and outdoor installations.<br> <br>Featuring an IR range of 20m, the cameras provide clear visibility even in low-light or no-light conditions. Whether it's day or night, you can trust the CP Plus CCTV Combo Kit to capture every detail.<br> <br>In summary, the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit is a reliable and comprehensive surveillance solution. It offers exceptional image quality, easy installation, and a wide range of temperature tolerance, making it a perfect choice for both residential and commercial applications. Choose CP Plus for unrivaled security.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity2 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
