CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 2 Dome Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 2 Dome Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

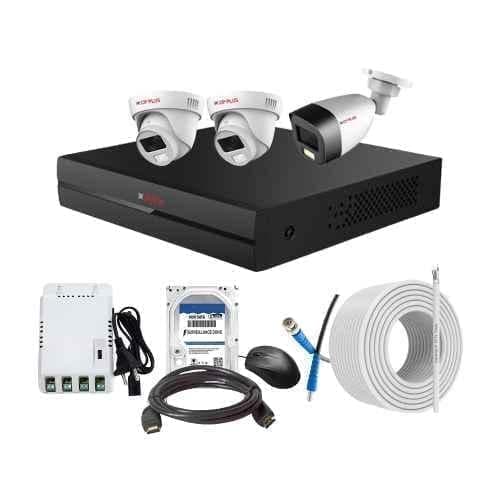

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 2 Dome Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the ultimate surveillance solution designed to keep your property safe and secure. This CCTV Combo Kit includes a 4Ch DVR, 1 Bullet, and 2 Dome Cameras, ensuring comprehensive coverage of both indoor and outdoor areas.<br> <br>The CP Plus 2.4MP cameras feature a 3.6 mm lens size, providing a wide field of view for capturing clear and detailed images. With a cable length of 70 m, you can conveniently install the cameras in various locations without compromising connectivity.<br> <br>Operating on an input voltage of 150-240 V AC, this CCTV Combo Kit is suitable for a range of power supplies. The embedded LINUX operating system ensures reliable performance and seamless recording of footage. <br> <br>With a working temperature range of -10 to 45 deg C for the DVR and SMPS, and an operating temperature range of -40 to 55 deg C for the dome camera, the CP Plus CCTV Combo Kit can withstand various weather conditions.<br> <br>Equipped with infrared technology, the cameras boast an impressive IR range of 20 m, providing crystal-clear images even in complete darkness.<br> <br>The kit also includes a 500GB HDD for storing and retrieving recorded footage efficiently. Additionally, a connector is provided for added convenience during the installation process.<br> <br>Choose the CP Plus brand for reliable and high-quality surveillance solutions. With its comprehensive features and top-notch performance, the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit is the ideal choice for all your security needs.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
