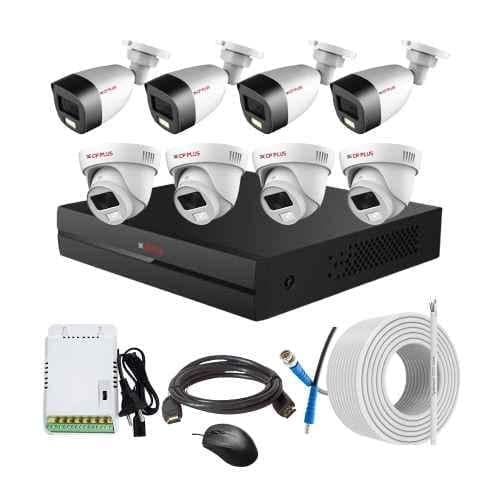

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 4 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 4 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 4 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, a comprehensive surveillance solution that ensures maximum security for your home or business. This advanced kit includes an 8-channel DVR with an embedded LINUX operating system, allowing for seamless and efficient monitoring.<br> <br>With a lens size of 3.6mm, the included dome and bullet cameras deliver crystal-clear video footage. The cameras are equipped with infrared technology, providing a remarkable 20m IR range for exceptional night vision capabilities. <br> <br>Designed to withstand extreme weather conditions, the dome camera can operate efficiently in temperatures ranging from -40 to 55 degrees Celsius. Meanwhile, the DVR and SMPS have a working temperature range of -10 to 45 degrees Celsius, ensuring reliability even in harsh environments.<br> <br>This reliable combo kit comes complete with an 8-channel SMPS, 70m copper cable, and necessary connectors, offering a hassle-free installation process. Additionally, the cable length of 70m provides flexibility in camera placement.<br> <br>Perfectly suited for both indoor and outdoor applications, the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit guarantees optimal security and peace of mind. Choose CP Plus as your trusted brand for top-notch surveillance solutions.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
