CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 6 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 6 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

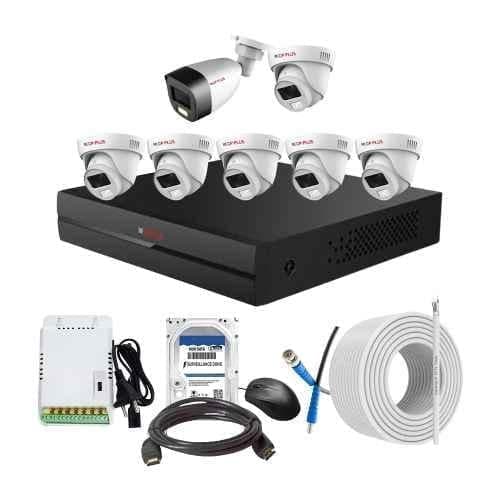

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 1 Bullet 6 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, a top-notch security solution for your home or business. With its high-definition 2.4MP resolution, you can expect crystal-clear images and videos, day or night. The combo kit includes an 8-channel DVR, 1 bullet, and 6 dome cameras, providing you with comprehensive coverage. The 3.6mm lens size ensures a wide field of view, while the 70m cable length allows for flexible installation. Operating on an embedded LINUX system, this kit guarantees optimal performance and reliability. With an IR range of 20m, you can rest assured that your surveillance is effective even in low-light conditions. The CP Plus CCTV Combo Kit also features a 500GB HDD for ample storage and an input voltage of 150-240V AC for universal compatibility. Designed to withstand varying temperatures, the DVR and SMPS can operate between -10 to 45deg C, while the dome camera can withstand temperatures from -40 to 55deg C. Trust in the CP Plus brand for all your security needs.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
