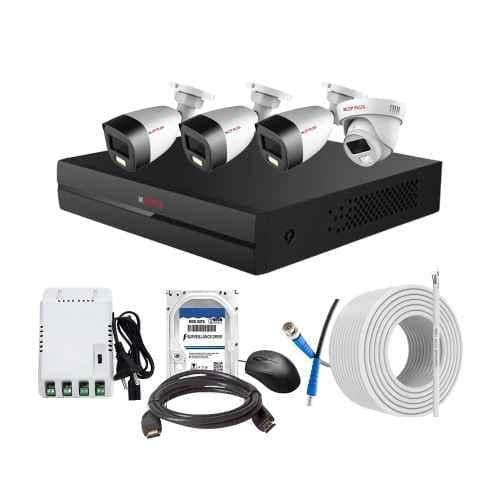

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 3 Bullet 1 Dome Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the ultimate security solution for your home or office. With this kit, you'll receive a 4Ch DVR, perfect for capturing and recording high-quality footage. Plus, you'll enjoy the benefits of three bullet cameras and one dome camera, all with a lens size of 3.6 mm, ensuring clear and detailed images.<br> <br>The CP Plus CCTV Combo Kit is designed for both indoor and outdoor use, providing you with peace of mind no matter where you are. Thanks to the included 70m cable, you can easily connect the cameras to the DVR without any hassle.<br> <br>This kit also includes a powerful 4Ch SMPS and a 500GB HDD, allowing you to store hours of surveillance footage. The connector ensures seamless connectivity between the cameras and the DVR.<br> <br>With an input voltage of 150-240 V AC and an operating system embedded in LINUX, this CCTV Combo Kit offers reliable and efficient performance. The working temperature of the DVR and SMPS ranges from -10 to 45 deg C, while the dome camera can withstand extreme temperatures from -40 to 55 deg C.<br> <br>In addition, the IR range of 20m ensures clear visibility even in low-light conditions. Trust the renowned brand name CP Plus to provide you with the highest quality surveillance equipment. Transform your security measures with the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity500 GB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
