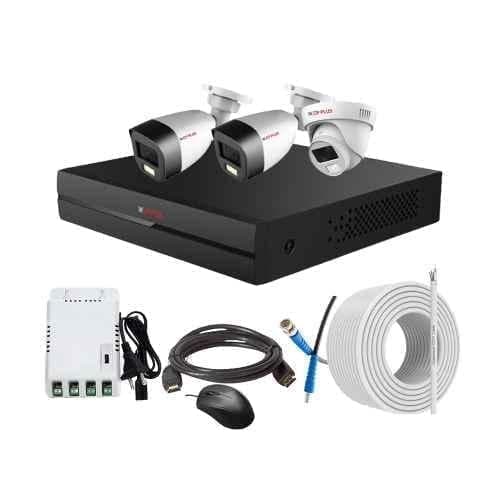

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

The CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Bullet 1 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors is the ultimate surveillance solution for both indoor and outdoor settings. With its high-definition 2.4MP resolution and full-color capabilities, this kit ensures crystal-clear footage at all times. The kit includes a 4Ch DVR, two bullet cameras, and one dome camera, offering comprehensive coverage of your property. The 3.6 mm lens size provides a wide viewing angle, while the 70m copper cable allows for flexible installation. With an input voltage range of 150-240 V AC, this kit is compatible with a wide range of power sources. The embedded LINUX operating system ensures smooth and reliable performance, while the working temperature range of -10 to 45 deg C ensures that the DVR and SMPS can withstand various weather conditions. The dome camera's operating temperature range of -40 to 55 deg C ensures durable performance year-round. With an IR range of 20m, this kit provides effective night vision capabilities. Choose CP Plus for exceptional quality and reliable security for your property.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
