CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome 2 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome 2 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

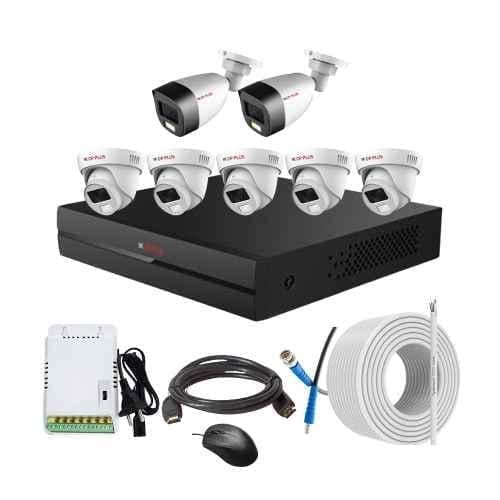

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Dome 2 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the ultimate surveillance solution for your home or business. This comprehensive kit includes everything you need to set up a reliable and efficient security system. <br> <br>With a total of 8 cameras, including 5 dome and 2 bullet cameras, you can ensure that every angle is covered both indoors and outdoors. The 3.6 mm lens size provides a wide field of view, capturing every detail with clarity. <br> <br>The DVR features 8 channels, allowing you to easily monitor and record footage from all of your cameras. The embedded LINUX operating system ensures stable and reliable performance. <br> <br>Equipped with 70m of copper cable, this kit offers easy installation and flexibility in camera placement. The included connectors also ensure a secure and reliable connection. <br> <br>The CP Plus CCTV Combo Kit is designed to withstand various weather conditions, with an operating temperature range of -10 to 45 deg C for the DVR and SMPS, and -40 to 55 deg C for the dome cameras. <br> <br>Featuring an impressive IR range of 20m, these cameras provide clear and detailed footage even in low-light conditions. <br> <br>With an input voltage of 150-240 V AC, this kit is suitable for use in a variety of locations. <br> <br>Upgrade your security system with the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit and enjoy peace of mind knowing that your property is well-protected.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
