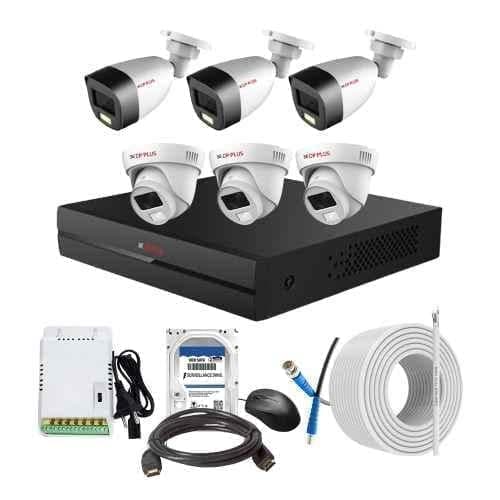

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 3 Dome 3 Bullet Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 3 Dome 3 Bullet Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 3 Dome 3 Bullet Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, the perfect solution for all your security needs. This comprehensive kit includes everything you need to set up a reliable and effective surveillance system. <br> <br>Featuring a high-quality 8-channel DVR with an embedded LINUX operating system, you can count on smooth and reliable performance. The 1TB HDD allows for ample storage of footage, ensuring you never miss a moment. With 3 dome and 3 bullet cameras included, you can cover a wide area both indoors and outdoors.<br> <br>The CP Plus CCTV Combo Kit is designed to provide crystal-clear video footage, thanks to its 2.4MP resolution and 3.6mm lens size. The full-color HD capability ensures that even in low light conditions, you can still capture vibrant and detailed images. The 20m IR range allows for clear nighttime surveillance.<br> <br>This kit also includes an 8Ch SMPS, providing a stable power supply for all your cameras. With a 70m cable length, you have the flexibility to position your cameras exactly where you need them. The input voltage range of 150-240V AC ensures compatibility with various power sources.<br> <br>Built to withstand harsh environments, the operating temperature range for the dome cameras is -40 to 55 degrees Celsius, while the DVR and SMPS can operate between -10 to 45 degrees Celsius. This makes it suitable for use in both indoor and outdoor settings.<br> <br>In conclusion, the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit is a comprehensive solution that offers high-quality video footage, easy setup, and durability. With its advanced features and reliable performance, it is the ideal choice for anyone looking to enhance their security system. Trust in the CP Plus brand for peace of mind and exceptional surveillance capabilities.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage Capacity1 TB
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
