CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

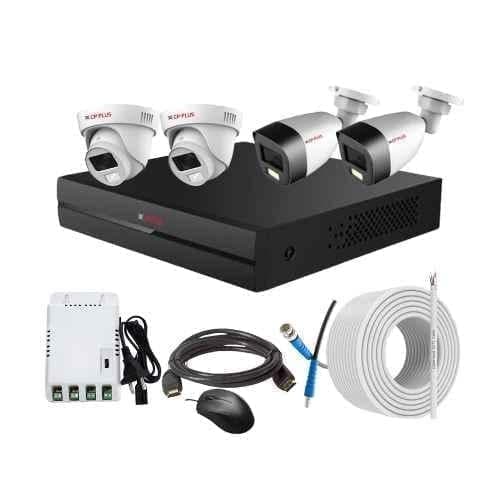

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome 2 Bullet Camera, 4Ch SMPS, 70m Copper Cable & Connectors

Introducing the CP Plus 2.4MP Full Color HD Audio Indoor & Outdoor CCTV Combo Kit, a perfect solution for your surveillance needs. This combo kit falls under the category of CCTV Combo Kits and is proudly brought to you by the trusted brand, CP Plus.<br> <br>With a lens size of 3.6mm, this kit captures high-quality images, ensuring enhanced clarity. The kit includes 2 dome cameras and 2 bullet cameras, making it suitable for both indoor and outdoor use. Whether you need to monitor your home or workplace, these cameras have got you covered.<br> <br>To ensure seamless operation, the kit comes with a 4-channel DVR that is embedded with an operating system of Embedded LINUX. This ensures smooth performance and hassle-free recording. The DVR and SMPS are built to withstand extreme temperatures, with an operating temperature range of -10 to 45 degrees Celsius.<br> <br>To provide you with maximum flexibility, the included cable measures 70 meters, allowing you to position your cameras conveniently. The kit is also equipped with connectors and a 4-channel SMPS for efficient power distribution.<br> <br>Featuring an impressive IR range of 20 meters, this kit provides clear visibility even in low-light conditions. With an input voltage range of 150-240 V AC, it is designed to work seamlessly with various power sources.<br> <br>Experience reliable surveillance with the CP Plus 2.4MP Full Color HD Audio Indoor & Outdoor CCTV Combo Kit. With its advanced features and trusted brand, you can trust this kit to keep a watchful eye over your premises.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 4
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
