CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Dome 2 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors
CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Dome 2 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

CP Plus 2.4MP Full Colour HD Audio

CP Plus
OEM Verified

Product Description

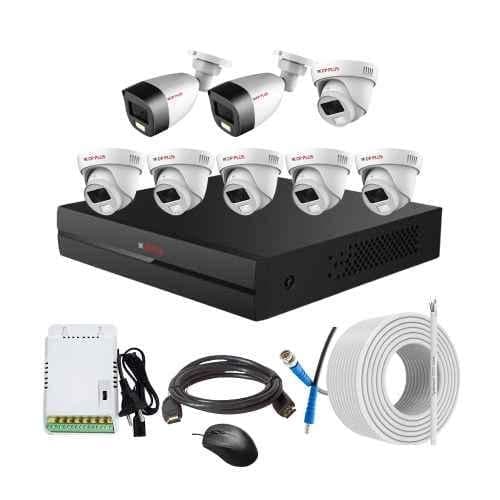

CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Dome 2 Bullet Camera, 8Ch SMPS, 70m Copper Cable & Connectors

Introducing the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit, a top-of-the-line security solution for all your surveillance needs. This high-definition combo kit includes an 8-channel DVR, 6 dome and 2 bullet cameras, an 8-channel SMPS, 70m of copper cable, and connectors, everything you need for comprehensive coverage.<br> <br>Featuring a lens size of 3.6mm, these cameras provide exceptional clarity and detail in both indoor and outdoor settings. With a cable length of 70m, you can easily install and connect the cameras to capture every angle of your property. The input voltage of 150-240V AC ensures stable and reliable performance.<br> <br>The CP Plus CCTV Combo Kit is powered by an embedded LINUX operating system, delivering smooth and efficient operation. The working temperature of the DVR and SMPS ranges from -10 to 45 degrees Celsius, ensuring reliable performance in various weather conditions. The infrared range of 20m allows for clear night vision, providing round-the-clock surveillance.<br> <br>Additionally, the operating temperature of the dome cameras is designed to withstand extreme temperatures ranging from -40 to 55 degrees Celsius, making them suitable for any environment. Trust the CP Plus brand for high-quality and reliable security solutions.<br> <br>In summary, the CP Plus 2.4MP Full Colour HD Audio Indoor & Outdoor CCTV Combo Kit offers exceptional performance, durability, and convenience. Protect your property and loved ones with this comprehensive security solution. Choose CP Plus for peace of mind.

Technical Specifications

ModelDome: CP-GPC-DA24PL2C-SE Bullet: CP-GPC-TA24PL2C-SE DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
NotesThe Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Camera2.4 MP
Weight2 kg
Voltage12 V DC ±30% DVR: 12 V DC
Ethernet1 RJ-45 Port (100 Mbps)
IR Range20 m
Warranty2 Years
Lens Size3.6 mm
StandardsIP67
Rated Power48 W
Cable Length70 m
Image Sensor1/2.8 inch 2.4MP CMOS
Input Voltage150-240 V AC
Audio Bit rate64 Kbps Per Channel
Packer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Frequency Range50-60 Hz
Leakage CurrentMax: 0.008 A
Video RecordingSub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video StreamingCVI PAL: 1080P at 25fps & 720P at 25 fps NTSC: 1080P at 30 fps & 720P at 30 fps AHD PAL: 1080P at 25 fps NTSC: 1080P at 30fps TVI PAL: 1080P at 25 fps NTSC: 1080P at 30fps CVBS PAL: 960H NTSC: 960H
Dimensions LxWxH25x25x25cm
Operating SystemEmbedded LINUX
Storage CapacityNO HDD
Storage Humidity0-90%
Video Resolution1920x1080p, 1280x1024p & 1280x720p
Working HumidityDVR: 10-90% SMPS: 5 to 95%
Country of originIndia
Power ConsumptionDome & Bullet: 3.1 W DVR: <10 W
Video CompressionInstastream/H.265/H.264+/H.264
Additional DetailsCasing: Plastic Max Aperture: F1.6 Mount Type: M12
Number of ChannelsDVR & SMPS: 8
Common/Generic NameCCTV Kit
Storage TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
Working TemperatureDVR & SMPS: -10 to 45 deg C
Manufacturer DetailsAditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Minimum Illumination0.01 Lux/F1.6 & 0 Lux White Light on
Operating TemperatureDome: -40 to 55 deg C Bullet: -40 to 60 deg C
