CP Plus 2.4MP 4 HD Camera Kit

CP Plus offers the CP Plus 2.4MP 4 HD Camera Kit as a surveillance camera intended for round-the-clock site surveillance where recorded footage has to hold up as evidence. Published specifications list resolution of Dome Camera: 2.4MP Bullet Camera: 2.4MP, video resolution of DVR: 1920x1080, 1280x1024 & 1280x720, image sensor of Dome Camera: 1/2.7 Bullet Camera: 1/2.7 and camera of DVR: IP Input: 4+1 & Each Channel Upto 2MP. It is further specified with shutter speed Dome Camera: 1/50s (1/60s)-1/100 & 000s (Auto/Fixed) Bullet Camera: 1/50s (1/60s)-1/100 & 000s (Auto/Fixed), network protocols DVR: HTTP, HTTPS, TCP/IP, IPv4/1Pv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF & CGI Conformant, power consumption Dome Camera: 0.4 W (2.5W After IR LED Powered on) Bullet Camera: 0.4 W (2.5W After IR LED Powered on) DVR: <10 W (without HDD) and voltage Dome Camera: 12 V DC @ ±10% Bullet Camera: 12 V DC @ ±15% DVR: 12 V DC. Security integrators specify it where coverage, night performance and recording retention are audited. It is listed at ₹8,359 on Industrial Hardwares, supplied through verified OEMs and distributors. Bulk and project pricing for the surveillance camera is quoted on request, along with current availability.

Technical Specifications

LensDome Camera: 3.6 mm Bullet Camera: 3.6 mm
TypeDome Camera: Body: Dome Bullet Camera: Body: Bullet
ModesDVR: Search: Time/Date, MD & Exact search (Accurate to Second) Backup: USB Device & Network
PortsDVR: Interface: 1 HDMI, 1 VGA & 2 USB 2.0
CameraDVR: IP Input: 4+1 & Each Channel Upto 2MP
Weight290 g
ChannelDVR: Video: 4 Channel & BNC
CurrentDVR: 1.5 Amp
VoltageDome Camera: 12 V DC @ ±10% Bullet Camera: 12 V DC @ ±15% DVR: 12 V DC
HumidityDome Camera: 10-90% & (Humidity) <95% RH no Dew Bullet Camera: 10-90% & (Humidity) <95% RH no Dew
Warranty1 Year
Item CodeHD 4 Camera Kit 2.4 MP
Model No.CP-VCK-TD22H-B1
S/N RatioDome Camera: ≥41 dB Bullet Camera: ≥41 dB
DimensionsDome Camera: 108x108x73.5 mm Bullet Camera: 154.6x71x71 mm DVR: 197x192x38 mm
Frame rateDome Camera: 30 FPS (60Hz) & 25 FPS (50Hz) Bullet Camera: 30 FPS (60Hz) & 25 FPS (50Hz)
ResolutionDome Camera: 2.4MP Bullet Camera: 2.4MP
Audio OutputDVR: 1 Channel & RCA
Image SensorDome Camera: 1/2.7 Bullet Camera: 1/2.7
Video OutputDVR: 1 HDMI & 1 VGA
Shutter SpeedDome Camera: 1/50s (1/60s)-1/100 & 000s (Auto/Fixed) Bullet Camera: 1/50s (1/60s)-1/100 & 000s (Auto/Fixed)
Number of LEDsDome Camera: 12 Pcs Bullet Camera: 12 Pcs
Packer DetailsAditya Infotech Ltd, A12 Sector 4 Noida, Telephone No: 0120-455556, Phone: +91-8448233444
Dimensions LxWxH9x9x9 cm
Operating SystemDVR: Embedded Linux

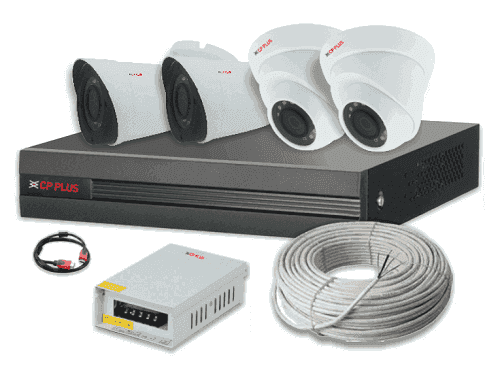

Package Contents2Pcs 2.4MP Dome Camera, 2Pcs Bullet Camera, 1 Pc 4 Channel DVR without Hard Disk, 1Pc 5A Power Supply, 90 m Co-axial Cable & 1.5m HDMI Cable
Protection ClassBullet Camera: Weatherproof: IP66
Video ResolutionDVR: 1920x1080, 1280x1024 & 1280x720
Country of originIndia
Network protocolsDVR: HTTP, HTTPS, TCP/IP, IPv4/1Pv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF & CGI Conformant
Power ConsumptionDome Camera: 0.4 W (2.5W After IR LED Powered on) Bullet Camera: 0.4 W (2.5W After IR LED Powered on) DVR: <10 W (without HDD)
Common/Generic NameCamera Kit
Working TemperatureDVR: -10 to 45 deg C @ 10-90% RH
Customer Care Number8800952952 & Email Id: support@cpplusworld.com
Manufacturer DetailsAditya Infotech Ltd, A12 Sector 4 Noida, Telephone No: 0120-455556, Phone: +91-8448233444
Minimum IlluminationDome Camera: Color (0.1Lux) & (0 Lux IR LED On) Bullet Camera: Color (0.1Lux) & (0 Lux IR LED On)
Operating TemperatureDome Camera: -20 to 50 deg C Bullet Camera: -20 to 50 deg C
