CP Plus 1MP 4 HD Camera Kit
CP Plus 1MP 4 HD Camera Kit

CP Plus 1MP 4 HD Camera Kit

CP Plus
OEM Verified

Product Description

CP Plus 1MP 4 HD Camera Kit

The CP Plus 1MP 4 HD Camera Kit is a CP Plus surveillance camera built for multi-site security estates that are reviewed from a single control room. The unit is specified with resolution of Dome Camera: 720 pixel Bullet Camera: 720 pixel, video resolution of DVR: 1920x1080, 1280x1024 & 1280x720, image sensor of Dome Camera: 1 MP HD Color Image Sensor Bullet Camera: 1 MP HD Color Image Sensor and camera of IP Input: 4+1: Each Channel Upto 2 MP. Supporting specifications include shutter speed Dome Camera: 1/50s (1/60s)-1/100000s (Auto/Fixed) Bullet Camera: 1/50s (1/60s)-1/100000s (Auto/Fixed), range IR Bullet Camera: 20 m, ir range Dome Camera: 20 m and network protocols DVR: HTTP, HTTPS, TCP/IP, IPv4/1Pv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12 & CGI Conformant. Facility teams deploy it where camera uptime and footage quality are part of the compliance record. It is listed at ₹16,260 on Industrial Hardwares, supplied through verified OEMs and distributors. Request a quote on the surveillance camera to confirm stock, delivery timelines and pricing for your order quantity.

Technical Specifications

LensDome Camera: 3.6 mm Bullet Camera: 3.6 mm
ModesDVR: Backup: USB Device & Network
PortsDVR: Interface: 1 HDMI, 1 VGA & 2 USB 2.0
RangeIR Bullet Camera: 20 m
CameraIP Input: 4+1: Each Channel Upto 2 MP
Weight618 g
ChannelDVR: Video: 4 Channel & BNC
CurrentDVR: 1.5 Amp
VoltageDome Camera: 12 V DC @ ±10% Bullet Camera: 12 V DC @ ±10% DVR: 12 V DC
HumidityDome Camera: 10-90% & <95% RH no Dew Bullet Camera: 10-90% & <95% RH no Dew
IR RangeDome Camera: 20 m
Warranty1 Year
Item CodeHD 4 Camera Kit 1 MP
Model No.CP-VCK-TD22H-A
DimensionsDome Camera: 108x108x73.5 mm Bullet Camera: 154.6x71x71 mm DVR: Embedded Linux
Frame rateDome Camera: 30 FPS (60 Hz) & 25 FPS (50 Hz) Bullet Camera: 30 FPS (60 Hz) & 25 FPS (50 Hz)
ResolutionDome Camera: 720 pixel Bullet Camera: 720 pixel
Audio OutputDVR: 1 Channel & RCA
IlluminationDome Camera: Color (0.1 Lux) & White & Black (0.01 Lux IR LED On) Bullet Camera: Color (0.1 Lux) & White & Black (0.01 Lux IR LED On)
Image SensorDome Camera: 1 MP HD Color Image Sensor Bullet Camera: 1 MP HD Color Image Sensor
Video OutputBullet Camera: 1.0VP-P Composite Output (750/BNC), HD-AHD (720P) 1 HD-TVI (720P)/HD-CVI(720P)/CVBS DVR: 1 HDMI & 1 VGA
Shutter SpeedDome Camera: 1/50s (1/60s)-1/100000s (Auto/Fixed) Bullet Camera: 1/50s (1/60s)-1/100000s (Auto/Fixed)
Number of LEDsBullet Camera: 12 Pcs
Packer DetailsAditya Infotech Ltd, A12 Sector 4 Noida, Telephone No: 0120-455556, Phone: +91-8448233444
Dimensions LxWxH140x350x350 mm

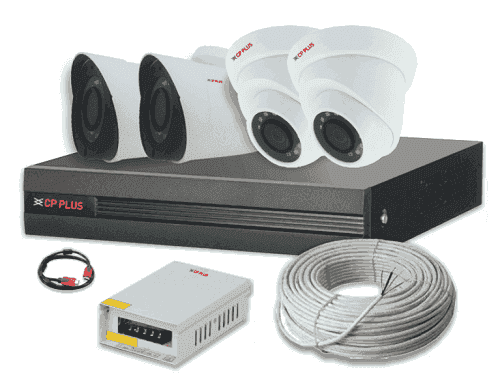

Package Contents2Pcs 1MP Dome Camera, 2Pcs Bullet Camera,1Pc 4 Channel DVR without Hard Disk,1Pc 5A Power Supply, 90m Co-axial Cable & 1.5m HDMI Cable
Video ResolutionDVR: 1920x1080, 1280x1024 & 1280x720
Country of originIndia
Network protocolsDVR: HTTP, HTTPS, TCP/IP, IPv4/1Pv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, P2P, IP Search, ONVIF 16.12 & CGI Conformant
Power ConsumptionDome Camera: 0.4 W (2.5W After IR LED Powered on) Bullet Camera: 0.4 W (2.5W After IR LED Powered on) DVR: <10 W (without HDD)
Common/Generic NameCamera Kit
Working TemperatureDVR: -10 to 45 deg C @ 10-90% RH
Customer Care Number8800952952 & Email Id: support@cpplusworld.com
Manufacturer DetailsAditya Infotech Ltd, A12 Sector 4 Noida, Telephone No: 0120-455556, Phone: +91-8448233444
Operating TemperatureDome Camera: -20 to 55 deg C Bullet Camera: -20 to 55 deg C
